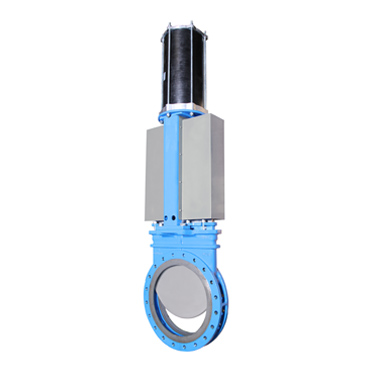

CX model
Uni-directional NFPA full flange knife gate valve for coal burner isolation
The CX model knife gate valve is an uni-directional full-flange knife gate valve specially designed to isolate pulverized coal burner lines in coal fired power plants. The design of these valves follows the NFPA 85 requirements.
Sizes
DN 200/8" to DN 900/36"
Design pressure
Exceeds 3,5 bar (50 psi) following NFPA 85
Standard flange connection
DIN PN10
ASME B16.5 (class 150)
OTHER (ON REQUEST)
Directives
For EU Directives and other Certificates please see the document: Directives & Certificates Compliance - Knife Gate Valves – Catalogues and Datasheets
